Identifying and Diagnosing Common Issues with the ADUM1250ARZ

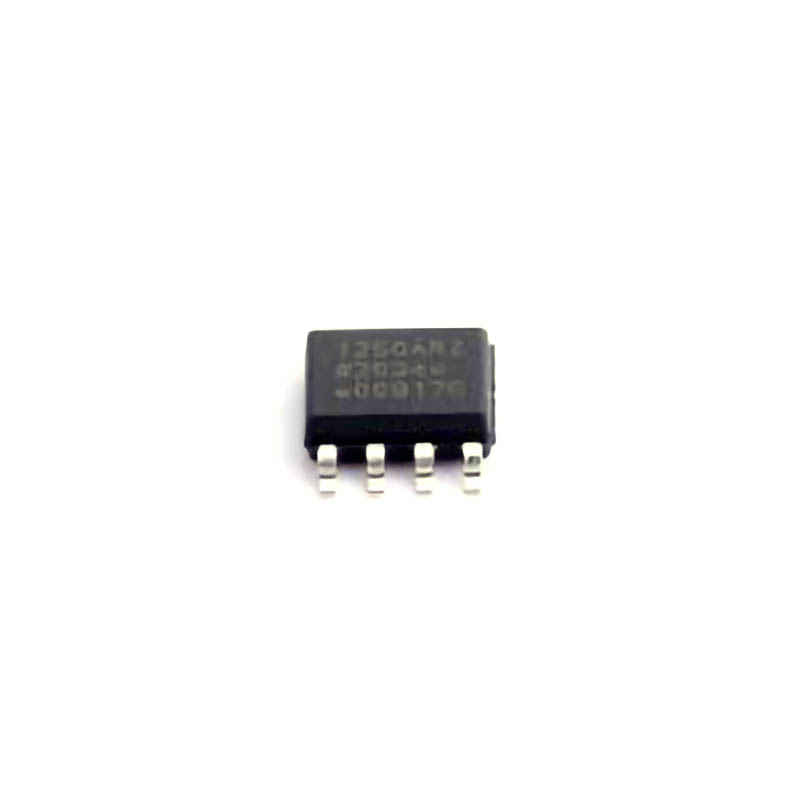

The ADUM1250ARZ, a member of Analog Devices’ family of digital isolators, is renowned for its high-performance isolation capabilities. These isolators protect sensitive circuits from voltage spikes, noise, and other disturbances that could otherwise cause system failure. Despite its robustness, users may face several issues in the field. Troubleshooting effectively requires an understanding of both the device and the application in which it's used. Below are some common problems that users may encounter and how to diagnose them.
1. Power Supply Issues
The ADUM1250ARZ requires a stable power supply for both sides of its isolation barrier. If the power is not within the specified range, the device may fail to operate properly. A common issue is insufficient voltage levels on either side of the isolator. To diagnose this:
Step 1: Verify that the Vdd1 (primary side) and Vdd2 (secondary side) are receiving the correct voltages, as specified in the datasheet.
Step 2: Check for any power fluctuations or drops that could indicate a power supply problem. You can use an oscilloscope to monitor voltage stability in real-time.
If the power supply is found to be unstable, make sure the power regulators are functioning properly. If you're using a shared power supply for multiple components, try isolating the ADUM1250ARZ to see if the issue persists.
2. Communication Failure or Inconsistent Data Transfer
A common issue with isolators is the loss of signal integrity, which may manifest as a failure in communication or inconsistent data transmission. The ADUM1250ARZ uses capacitive coupling to transfer data between isolated sections, and any issues here can cause communication errors.
Step 1: Check the input and output lines of the isolator. If the signals look distorted or are missing entirely, there may be an issue with the logic levels.
Step 2: Inspect the PCB layout and make sure the traces are routed according to best practices for high-speed signals. Improper routing can introduce noise and reduce signal integrity.
If the communication issue occurs intermittently, it could be due to improper grounding, noise interference, or poor PCB trace layout. Check for ground loops or electromagnetic interference ( EMI ) that could impact signal transmission.
3. Overheating or Thermal Issues
The ADUM1250ARZ operates within a specified temperature range. Overheating can cause the device to malfunction or even fail. If you're experiencing erratic behavior or sudden device shutdowns, thermal issues could be the culprit.
Step 1: Check the ambient temperature in the environment where the ADUM1250ARZ is operating. The device’s datasheet will provide the recommended temperature range.
Step 2: Measure the temperature of the isolator using an infrared thermometer or thermocouple to detect if it exceeds safe limits.
Thermal runaway can occur if the device is used in an environment where ventilation is poor or if there is insufficient heat dissipation. Make sure your system is adequately cooled and that the ADUM1250ARZ is not operating under excessive current loads that could result in overheating.
4. Grounding and Noise Issues
Improper grounding is one of the leading causes of malfunctions in digital isolators. Ground loops or noisy power supply circuits can interfere with the operation of the ADUM1250ARZ. This issue is especially prevalent in systems with multiple isolators or in noisy industrial environments.
Step 1: Inspect the grounding configuration of the system. Ensure that the primary and secondary sides of the isolator have separate and well-defined grounds.
Step 2: If noise is suspected, use a spectrum analyzer to check for high-frequency interference that may be coupling into the isolator’s signals.
One of the most effective ways to minimize grounding and noise issues is by implementing proper decoupling capacitor s on both sides of the isolator to smooth out voltage spikes and noise.
Advanced Troubleshooting Techniques and Solutions for the ADUM1250ARZ
Once you've identified and diagnosed basic issues with the ADUM1250ARZ, there are several advanced troubleshooting steps you can take to resolve persistent or complex problems. These solutions will help ensure that the device operates at peak efficiency in your application.
5. Signal Integrity and Trace Layout Optimization
For high-speed data transfer, signal integrity is paramount. The ADUM1250ARZ operates at speeds that require careful design consideration, particularly when routing traces and choosing components. Issues like reflections, crosstalk, and electromagnetic interference (EMI) can degrade the performance of the isolator.
Step 1: Review your PCB layout to ensure that high-speed signal traces are kept as short and direct as possible.
Step 2: Implement controlled impedance traces, especially for high-frequency signals. Ensure that the traces maintain consistent impedance and avoid sharp turns that could cause signal reflections.
Using a signal integrity analyzer will help detect potential issues with your design. Simulate the circuit layout and check for unwanted noise or signal degradation that might cause the isolator to malfunction.
6. Proper Use of Termination Resistors
In some cases, the ADUM1250ARZ may experience poor signal transmission due to improper termination. This is particularly important for differential signals, where mismatched impedance can lead to signal reflections, causing data corruption or communication errors.
Step 1: Check for the proper termination of differential lines. If necessary, add series or parallel termination resistors as specified by the application circuit in the datasheet.
Step 2: If you're working in a noisy or long-distance communication setup, consider adding additional termination on the PCB to improve signal quality.
Termination resistors help absorb reflections and maintain signal integrity over longer transmission lines. If your setup uses differential pairs, carefully match the impedance of the traces and use the correct value for termination resistors.
7. Evaluating and Testing Under Load Conditions
Sometimes, a device may appear to function correctly in a no-load condition but fail when under operational load. The ADUM1250ARZ may be sensitive to variations in current or load conditions, especially if the system operates in an environment with fluctuating power demands.
Step 1: Apply the expected operational load to the system and monitor the isolator’s performance in real-time.
Step 2: Use an oscilloscope to examine the signals under load conditions and check for voltage drops or irregularities.
If the performance degrades under load, you may need to evaluate your power supply capabilities or consider adding filtering to smooth out any power spikes that could impact the ADUM1250ARZ.
8. Addressing Compatibility and Application-Specific Issues
In some cases, the issue may not be with the ADUM1250ARZ itself, but with how it is integrated into the larger system. The isolator might not be compatible with certain communication protocols or voltage levels in your specific application.
Step 1: Ensure that the ADUM1250ARZ is the right choice for your system requirements in terms of voltage, speed, and isolation rating.
Step 2: Cross-check the isolation barrier voltage ratings and data rate limits for compatibility with other components in your circuit.
For complex systems, reviewing the entire design, including the choice of components and communication protocols, is necessary. Ensure that the ADUM1250ARZ is integrated correctly to avoid potential incompatibilities.
Conclusion: Ensuring Optimal Performance with the ADUM1250ARZ
By understanding the common troubleshooting techniques outlined in this guide, you can quickly identify and resolve issues related to the ADUM1250ARZ digital isolator. Proper diagnostics, careful design, and thoughtful integration will ensure that the isolator operates reliably in your system. Whether you're dealing with power supply issues, signal integrity concerns, or environmental factors like noise and temperature, addressing these challenges early can prevent costly failures and ensure the longevity of your system.
Regular maintenance, proper grounding, and a well-thought-out PCB design are crucial to achieving the highest performance from the ADUM1250ARZ. With the right tools and knowledge, you can troubleshoot and resolve most issues efficiently, ensuring your applications run smoothly and securely.
