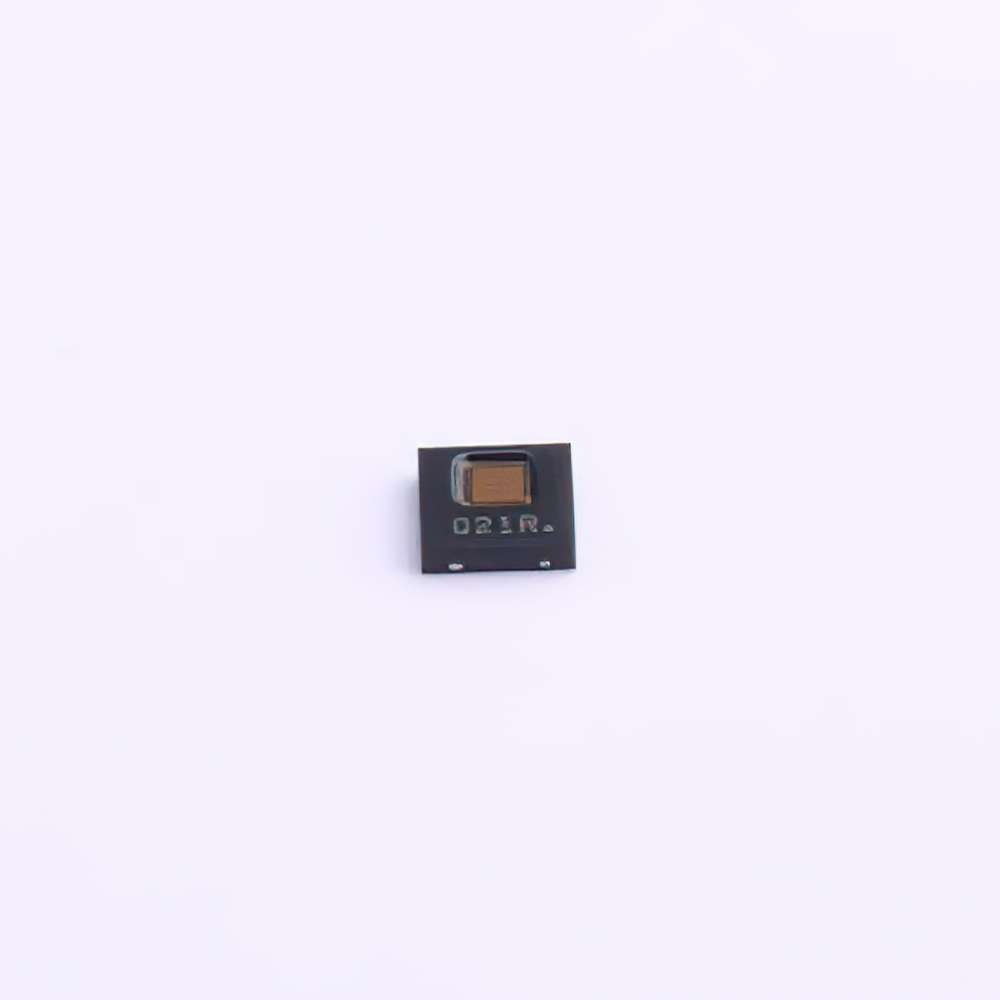

The HDC1080DMBR Sensor , known for its high-precision temperature and humidity measurements, is a vital component in many electronic applications. This article delves into common troubleshooting issues users may face with the HDC1080DMBR sensor and offers practical solutions to ensure its efficient performance.
HDC1080DMBR troubleshooting, sensor issues, humidity sensor, temperature sensor problems, HDC1080DMBR solutions, sensor calibration, HDC1080DMBR fix, sensor troubleshooting guide
Introduction to the HDC1080DMBR and Common Issues
The HDC1080DMBR is a popular digital temperature and humidity sensor, known for its high accuracy, low Power consumption, and compact design. Whether you're using it in a weather station, HVAC system, or IoT device, the HDC1080DMBR offers reliable measurements that can be crucial for performance. However, like any electronic component, users may encounter occasional issues that can hinder its accuracy or functionality.
This article provides a detailed guide to troubleshooting common problems that may arise with the HDC1080DMBR and offers practical solutions to fix them, ensuring your sensor performs at its best.
1. No Output from the Sensor
One of the most common issues that users experience is a complete lack of output from the HDC1080DMBR sensor. This can be frustrating, especially if you're relying on the sensor for critical measurements. Several factors could be responsible for this issue, including:
Power supply issues: The HDC1080DMBR requires a stable supply of power. Ensure that the sensor is properly powered within the specified voltage range of 2.7V to 3.6V. Check the power source for any fluctuations that might disrupt the sensor's operation.
Incorrect wiring or connections: The HDC1080DMBR communicates over an I2C bus. If the sensor is not receiving a correct signal, ensure that the SCL and SDA pins are connected properly to the microcontroller or processor you're using. Check for loose connections or faulty soldering.
Software configuration issues: Ensure that the sensor is correctly initialized in your code. Many users forget to properly configure the sensor before starting measurements. Double-check the initialization routine in your code to ensure it aligns with the datasheet's recommended settings.
2. Incorrect Temperature or Humidity Readings
If your HDC1080DMBR sensor is providing readings that seem incorrect, the first step is to verify the sensor's calibration. Out-of-range or inaccurate data can often be traced back to either a calibration issue or environmental factors affecting the sensor’s performance.
Calibration drift: Over time, sensors may experience calibration drift, which can affect their accuracy. Although the HDC1080DMBR is factory-calibrated, external conditions like temperature extremes or prolonged exposure to humidity might require recalibration. Fortunately, recalibration can often be done by comparing the sensor's readings to a known accurate standard and applying correction factors in your software.
Environmental factors: Humidity and temperature sensors can be sensitive to their environment. Ensure the sensor is placed in an area where airflow is not obstructed, and avoid placing it in direct contact with heat sources or in extremely humid environments, which can skew readings. If the sensor is used in a high-precision environment, consider isolating it from direct exposure to external contaminants.
Incorrect conversion of data: The raw output from the sensor needs to be converted into meaningful temperature and humidity values. Ensure that you're correctly interpreting the sensor’s output data according to the HDC1080DMBR datasheet. Many users encounter issues because they don't properly convert the raw data into temperature (°C) and relative humidity (%) values.
3. Sensor Initialization Failure
Sometimes the sensor may fail to initialize, especially if it’s being used in a new design or with an unfamiliar microcontroller. This issue typically arises due to incorrect communication setup or poor power management.
I2C communication issues: The HDC1080DMBR uses the I2C communication protocol. Verify that the microcontroller or development board supports I2C and that the communication lines (SDA and SCL) are properly configured. Use an oscilloscope or logic analyzer to check for proper signal activity on the I2C bus.
Address conflicts: The HDC1080DMBR sensor operates with a default I2C address (0x40). However, if multiple devices are connected on the same I2C bus, address conflicts may arise. Verify that there are no other devices with the same address, or configure the I2C address of conflicting devices if necessary.
Pull-up resistors: I2C lines often require pull-up resistors to ensure proper signal levels. Check that appropriate resistors (typically 4.7kΩ) are placed on the SDA and SCL lines to prevent communication failures.
Advanced Troubleshooting Tips and Fixes for HDC1080DMBR
In the first part of the article, we discussed basic troubleshooting steps for common issues with the HDC1080DMBR. In this section, we’ll dive deeper into advanced troubleshooting tips and explore some fixes for more complex problems.
4. Intermittent Sensor Failures
If your HDC1080DMBR sensor occasionally stops functioning or exhibits intermittent behavior, this could point to a number of underlying issues. Some common causes and their solutions include:
Power fluctuations: Even if the sensor appears to be properly powered, sudden voltage spikes or drops can lead to inconsistent behavior. Use a stable, regulated power supply to eliminate voltage instability. Additionally, consider adding decoupling capacitor s near the sensor to filter out noise and smooth out any power disruptions.
Overheating: The HDC1080DMBR sensor is designed to operate within a certain temperature range. Overheating could lead to erroneous readings or intermittent failures. Ensure that the sensor is operating within its specified temperature range (from -40°C to +125°C). You can also monitor the sensor's temperature and humidity to detect abnormal fluctuations.
Noise interference: The I2C communication lines (SDA and SCL) are susceptible to electromagnetic interference ( EMI ), especially in environments with many electronic devices. To resolve this, you can shield the sensor or use I2C bus extenders and filters to reduce noise interference. Also, keeping the communication lines as short as possible can improve signal integrity.
5. Low Accuracy at High Humidity Levels
In some cases, users may notice a degradation in accuracy when the HDC1080DMBR is exposed to high humidity environments. This is a known issue with many humidity sensors, but there are several strategies to mitigate this problem:
Sensor placement: Make sure that the sensor is not in direct contact with water droplets or excessive moisture, which can lead to inaccurate humidity measurements. In high-humidity environments, placing the sensor in a protective enclosure with breathable material can help reduce inaccuracies caused by condensation.
Compensation algorithms: To enhance accuracy in extreme conditions, implement compensation algorithms in your software. These algorithms can help adjust readings based on environmental factors such as temperature, barometric pressure, or ambient humidity. Some advanced calibration techniques also take into account the sensor’s specific characteristics, improving overall measurement accuracy.
Regular maintenance: Over time, the sensor’s performance can degrade if it’s exposed to harsh environments. Regular maintenance checks can help identify issues before they become critical. For instance, cleaning the sensor periodically or recalibrating it after a certain period can help ensure reliable performance.
6. Software and Firmware Updates
It’s essential to keep both your software and firmware up to date, as bugs and compatibility issues with newer devices may sometimes cause unexpected behavior. Check the manufacturer’s website for any available firmware updates or software patches.
Firmware issues: Occasionally, the firmware on your microcontroller may not be fully compatible with the HDC1080DMBR. Ensure you are using the latest driver or library for your sensor, as outdated software may not support all features or may have bugs that affect sensor performance.
Check datasheet for updates: Always keep an eye on the datasheet for any revisions or updates. Manufacturers sometimes release new calibration data, improved initialization routines, or other changes that can affect sensor performance.
Conclusion
The HDC1080DMBR sensor is a reliable and accurate tool for measuring temperature and humidity, but like all electronic components, it is susceptible to certain issues. By following the troubleshooting tips and solutions provided in this article, you can address common problems and ensure your sensor performs optimally. From ensuring proper power supply and wiring to calibrating for accurate measurements, these fixes will help you maintain the long-term functionality of your HDC1080DMBR sensor. With a little attention to detail and regular maintenance, you can maximize the lifespan and reliability of your HDC1080DMBR in your applications.
