Introduction to the SN74LVC1G32DBVR and Its Role in Embedded Systems
Embedded systems are the backbone of modern electronic devices, ranging from consumer gadgets to industrial machinery. The need for efficient and reliable components is paramount in these systems, especially when dealing with complex logic operations and decision-making processes. One such component is the SN74LVC1G32DBVR, a member of Texas Instruments' LVC series of logic gates, which is commonly used in embedded system designs. This versatile logic gate offers a range of applications that significantly contribute to the performance and efficiency of embedded systems.
What is the SN74LVC1G32DBVR?

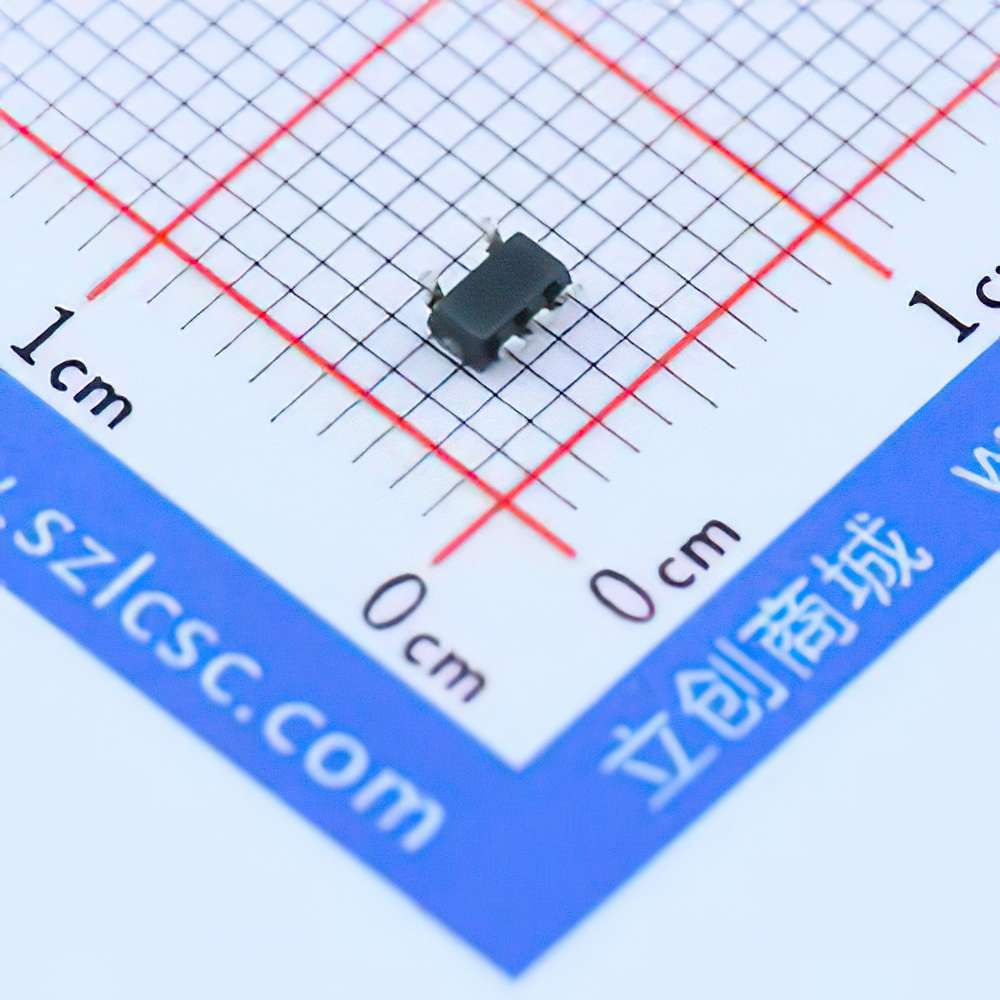

The SN74LVC1G32DBVR is a single 2-input OR gate in a small, compact package. It belongs to the Low-Voltage CMOS (LVC) family, which is designed to operate at low voltages while ensuring high-speed performance and low Power consumption. The primary function of this IC is to perform logical OR operations, where it outputs a high signal (logic 1) if at least one of its two input signals is high. This simple yet essential function makes the SN74LVC1G32DBVR a fundamental building block for many embedded system applications.
The SN74LVC1G32DBVR operates on a voltage range of 1.65V to 5.5V, which ensures compatibility with a wide variety of microcontrollers and other components commonly used in embedded systems. Its small footprint, high-speed operation, and low power consumption make it an ideal choice for space-constrained applications like portable devices, wearable technology, and battery-powered systems.
Key Features of SN74LVC1G32DBVR
Voltage Range: Operates at voltages from 1.65V to 5.5V, making it compatible with both low-voltage and higher-voltage systems.
Low Power Consumption: Designed for energy-efficient applications, helping to extend the battery life of embedded systems.
High-Speed Performance: Capable of operating at speeds up to 30 MHz, which makes it suitable for high-frequency logic applications.
Compact Package: The device comes in a small 5-pin SOT-23 package, making it ideal for designs where space is limited.
Noise Immunity: The LVC series provides excellent noise immunity, ensuring reliable operation in environments with electrical interference.
These characteristics make the SN74LVC1G32DBVR a valuable asset in embedded systems, especially when performing basic logic functions in combination with other components.
Applications of the SN74LVC1G32DBVR in Embedded Systems
The versatility of the SN74LVC1G32DBVR allows it to be applied in a wide variety of embedded system applications. From simple logic circuits to complex decision-making processes, the OR gate functionality is used in numerous ways to improve the performance and reliability of embedded systems.
1. Signal Processing and Control Logic
In many embedded systems, it is essential to combine different signals to determine a final output. The SN74LVC1G32DBVR, as a 2-input OR gate, is ideal for combining multiple digital signals to make decisions. For example, in microcontroller-based systems, it may be used to combine several input signals from Sensors or switches to trigger specific control actions, such as turning on an LED , activating a motor, or sending a Communication signal.
Consider an embedded system designed to monitor the status of two Sensor s (e.g., temperature and humidity sensors). The system can use the SN74LVC1G32DBVR to combine the outputs of these sensors and activate an alarm if either of the sensors detects an abnormal condition. This is a classic example of a simple yet effective application of the OR gate in embedded systems.
2. Interrupt Handling and Priority Logic
Embedded systems often need to handle interrupts or process multiple tasks simultaneously. In many cases, interrupt signals from different peripherals need to be prioritized. The SN74LVC1G32DBVR can be used to implement priority logic in interrupt handling circuits, where multiple input signals are combined to determine the highest-priority interrupt source. By using OR gates in the priority encoder circuits, the system can efficiently determine which interrupt should be processed first, optimizing the performance of the system.
3. Edge Detection and Timing Applications
In real-time embedded systems, edge detection and precise timing are crucial for synchronizing operations. The SN74LVC1G32DBVR can be used in conjunction with other components to implement edge detection circuits. By detecting a change in the state of a signal (from low to high or vice versa), the OR gate can help trigger specific actions, such as starting a timer or activating a sequential process.
For example, in a clocked system, the SN74LVC1G32DBVR can be used to detect a rising edge of a clock signal and then trigger the execution of specific tasks based on the timing of the clock. This is commonly seen in pulse-width modulation (PWM) applications, where precise timing is critical to control the speed of motors or the brightness of LED s.
4. Power Management and System Shutdown
Power management is a critical concern in embedded systems, especially for battery-operated devices. The SN74LVC1G32DBVR is useful in power management circuits where multiple power sources or shutdown conditions need to be monitored. For example, it can be used to combine signals from various power-related sensors (e.g., voltage levels, battery charge status) to determine whether the system should enter a low-power or shutdown mode.
In an embedded system where power consumption must be minimized, the OR gate can help decide when to activate a low-power state or completely shut down certain components when the battery is low or when no input signal is detected. This ensures that the system remains energy-efficient while maintaining its functionality.
5. LED Control and Visual Indicators
Embedded systems often use LEDs to indicate various statuses, such as power-on status, system errors, or operating modes. The SN74LVC1G32DBVR can be employed in LED control circuits, where it is used to combine different input conditions and trigger the appropriate LED output.
For example, an embedded system could use multiple sensors to monitor the health of a machine. If any of the sensors detects a fault, the SN74LVC1G32DBVR can be used to combine these signals and turn on a fault indicator LED. This simple application of the OR gate makes it easier to design systems that visually communicate their status to users.
Advanced Applications and Design Considerations
While the SN74LVC1G32DBVR is widely used in basic embedded system applications, its potential is even greater when it comes to more advanced designs. By combining multiple logic gates and integrating them into larger systems, designers can take advantage of the small size and power-efficient nature of this IC to create sophisticated logic circuits that improve embedded system performance.
6. Communication Protocols and Bus Systems
Embedded systems often require communication between different module s, either over wired or wireless networks. Communication protocols such as I2C, SPI, and UART rely on the management of various control signals, timing signals, and data lines. The SN74LVC1G32DBVR can be used in these systems to handle signal combining, synchronization, and error detection.
In an SPI communication system, for instance, the OR gate can be used to combine signals from multiple devices to ensure proper data transfer. If multiple slave devices are connected to a master device, the SN74LVC1G32DBVR can help prioritize the communication signals, allowing the master device to manage data from different sources effectively.
7. Timing and Sequencing in Complex Embedded Systems
In more complex embedded systems, precise timing and sequencing are critical for operations that require synchronization between different subsystems. The SN74LVC1G32DBVR can be used in timing circuits to help generate specific sequences of operations based on the logical combination of signals.
For instance, in a system that controls multiple actuators or motors, the OR gate can be used to combine signals from various timing sources (e.g., timers, counters) to ensure that each motor is activated in the correct sequence. This is particularly useful in robotics and automation systems, where precise coordination of movements is essential.
8. Digital Logic Integration with Sensors and Actuators
Embedded systems typically interface with sensors and actuators to monitor and control the physical world. The SN74LVC1G32DBVR can be used to combine signals from multiple sensors or actuators in systems where logical decisions need to be made based on inputs from various sources. For example, in a smart home automation system, the OR gate could combine signals from a motion sensor and a light sensor to decide whether to turn on the lights.
Additionally, the device’s low power consumption makes it ideal for battery-powered IoT applications, where minimizing energy usage is critical. Whether controlling home appliances or wearable devices, the SN74LVC1G32DBVR ensures that the system remains responsive without sacrificing energy efficiency.
9. Fault Detection and System Health Monitoring
Ensuring the health and stability of an embedded system is essential, particularly in critical applications like medical devices or industrial control systems. The SN74LVC1G32DBVR can be used in fault detection circuits, where it helps monitor the status of various system parameters, such as voltage, current, and temperature.
By combining the outputs of different fault-detection sensors, the OR gate can trigger an alert if any of the monitored parameters fall outside of acceptable limits. This allows the system to react quickly and prevent damage, ensuring reliable performance and safety in critical applications.
Conclusion
The SN74LVC1G32DBVR is an indispensable component in the design of embedded systems. From basic logic circuits to more advanced applications in communication, power management, and timing, this small but powerful IC contributes to the efficiency and performance of modern electronic systems. Its versatility, low power consumption, and high-speed operation make it an ideal choice for embedded system designers, ensuring that applications run smoothly and reliably. By understanding the various applications of the SN74LVC1G32DBVR, engineers can better harness its potential to create cutting-edge embedded solutions for a wide range of industries.
