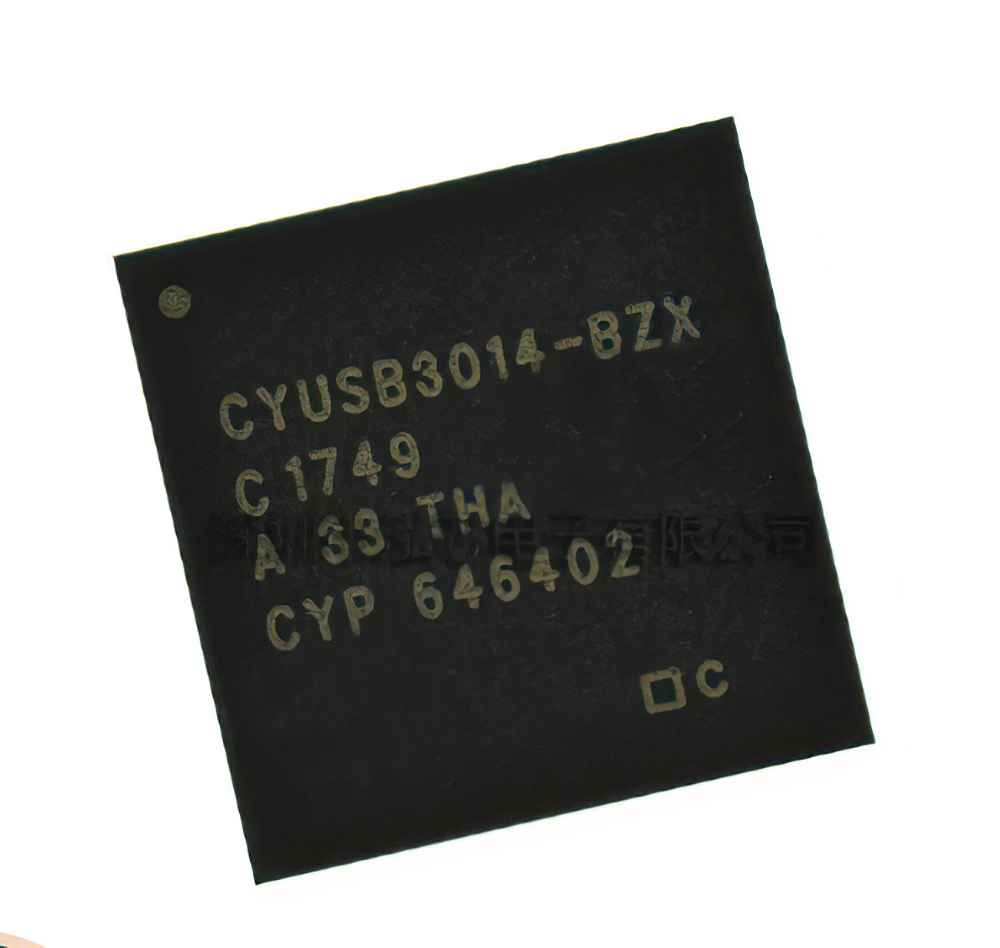

The Power of the CYUSB3014-BZXC USB 3.0 Controller
In today’s world, data transfer speed has become one of the most critical aspects of digital communication. Whether it’s for consumers using USB drives, industrial applications requiring real-time data handling, or medical devices demanding reliable data exchange, the speed and efficiency of data transfer play a vital role. One of the key players in making this possible is the CYUSB3014-BZXC USB 3.0 controller, a product developed by Cypress S EMI conductor that enables high-speed data transmission in a wide range of applications.
In this article, we’ll explore how the CYUSB3014-BZXC can be employed to facilitate faster data transfer, why it is a game-changer in the world of USB technology, and how it can be integrated into various high-speed data applications.
1. Understanding USB 3.0 and the CYUSB3014-BZXC
USB 3.0, also known as SuperSpeed USB, offers significant improvements over previous USB standards. The CYUSB3014-BZXC is a USB 3.0 controller that enables high-speed data transfer up to 5 Gbps. This is nearly 10 times faster than USB 2.0, which operates at a maximum speed of 480 Mbps.
The CYUSB3014-BZXC chip is capable of managing data flows between a host and devices, ensuring fast and efficient data handling. It supports both USB 3.0 SuperSpeed and USB 2.0 speeds, making it versatile for different applications. It also comes with built-in FIFO (First In First Out) Buffers , enhancing its ability to handle bursts of data.
For applications that require high data throughput, such as video streaming, data storage, and industrial control systems, the CYUSB3014-BZXC is the ideal choice. By leveraging its superior bandwidth capabilities, developers can maximize performance, reduce latency, and provide a seamless user experience.
2. Key Features of the CYUSB3014-BZXC USB 3.0 Controller
The CYUSB3014-BZXC is packed with features that cater to both general-purpose applications and specialized high-speed data transfer needs:
SuperSpeed USB 3.0 Support: With a maximum throughput of 5 Gbps, the CYUSB3014-BZXC ensures rapid data transfer for demanding applications.
USB 2.0 Compatibility: The controller is backward compatible with USB 2.0, making it suitable for legacy systems while providing the option to upgrade to the faster USB 3.0 speeds when needed.
Low Latency: The controller minimizes data transfer delays, ensuring that applications requiring real-time communication, such as video streaming or sensor data acquisition, perform optimally.
Integrated FIFO Buffers: The on-chip FIFO buffers allow for efficient management of large amounts of data, preventing data loss during bursts of high-speed data transfer.
Flexible Configuration: The device offers various configurations and modes, allowing it to be tailored to specific needs, whether in consumer electronics, industrial control systems, or medical devices.
These features make the CYUSB3014-BZXC an indispensable component in numerous applications, offering speed, reliability, and scalability.
3. Applications of the CYUSB3014-BZXC USB 3.0 Controller
The CYUSB3014-BZXC’s capabilities are ideal for various applications that require high-speed data transfer. Let’s explore some of the key areas where this controller excels:
External Storage Devices: High-speed data transfer is crucial for external storage devices such as USB flash drives and external hard drives. By leveraging the CYUSB3014-BZXC, these devices can achieve faster read/write speeds, making data transfer operations smoother and more efficient.
Video Capture and Streaming: Applications such as video capture, broadcasting, and streaming rely on high-quality, high-speed data transfer. The CYUSB3014-BZXC enables seamless transmission of large video files, providing smooth and uninterrupted streaming experiences.
Industrial and Medical Equipment: The need for fast, real-time data transfer is paramount in fields such as industrial automation and medical devices. The CYUSB3014-BZXC can be used in systems that monitor machinery, sensors, or medical devices like diagnostic equipment, where delays could lead to critical failures or inaccurate results.
Peripheral Devices: For peripherals such as printers, scanners, and cameras, the CYUSB3014-BZXC provides fast data transfer rates, reducing lag and improving overall performance. USB 3.0 speeds make it possible for these devices to handle larger data sets more efficiently.
Consumer Electronics: From smartphones to high-performance gaming consoles, many consumer electronics devices now require high-speed data transfer capabilities. The CYUSB3014-BZXC meets these needs by providing quick connections for data-heavy tasks like media file transfers, backups, and more.
4. Integrating the CYUSB3014-BZXC into Your System
When integrating the CYUSB3014-BZXC USB 3.0 controller into a system, developers need to ensure compatibility with the existing hardware and software architecture. The integration process involves several key steps:
Designing the Circuit: The first step in integrating the CYUSB3014-BZXC is designing the circuit. This involves selecting appropriate power supplies, connectors, and PCB layout considerations that accommodate the high-speed data requirements.
Firmware Development: The firmware running on the CYUSB3014-BZXC needs to manage data flows, error handling, and communication protocols. Custom firmware may be required to meet specific application needs, ensuring that the controller operates optimally in the given environment.
Driver Support: For the CYUSB3014-BZXC to function properly, appropriate drivers must be installed on the host system. These drivers provide the necessary interface between the operating system and the USB controller, allowing seamless communication and data transfer.
Testing and Debugging: Once the controller is integrated, thorough testing is crucial to ensure that it meets performance standards. Developers should test for data throughput, latency, and error handling to confirm that the controller operates as expected under various conditions.
Best Practices for Maximizing the CYUSB3014-BZXC Performance in High-Speed Data Transfer
In the previous section, we introduced the CYUSB3014-BZXC USB 3.0 controller and discussed its features, applications, and integration. In this section, we’ll dive deeper into best practices for maximizing its performance in high-speed data transfer applications. These practices will help you harness the full potential of the controller while ensuring reliability and efficiency in your system.
1. Optimizing Power Supply and PCB Design
High-speed data transfer systems can be sensitive to noise, signal degradation, and power supply fluctuations. Therefore, it’s essential to design a robust power supply and PCB layout to support the CYUSB3014-BZXC. Some key considerations include:
Power Integrity: Ensure that the power supply to the CYUSB3014-BZXC is stable and provides sufficient voltage and current for the controller to function without interruption. Power fluctuations can lead to data loss or transfer errors.
Minimizing Noise and Interference: The high-speed signals involved in USB 3.0 data transfer are susceptible to electromagnetic interference (EMI). Proper shielding, signal routing, and decoupling capacitor s are critical to maintaining signal integrity and reducing noise.
PCB Trace Design: Design PCB traces for USB 3.0 lines (especially differential signal pairs) with low impedance and minimal length to prevent signal reflections and degradation. Ensure that the traces are routed in a way that minimizes cross-talk and interference.
2. Leveraging FIFO Buffers for Data Handling
The FIFO buffers integrated into the CYUSB3014-BZXC are a powerful tool for managing large bursts of data. To maximize their effectiveness, developers should:
Monitor Buffer Levels: Properly monitor the FIFO buffer levels to ensure that the data is flowing without getting stuck. If the buffer fills up, data might be lost or delayed, affecting system performance.
Implement Flow Control: Use flow control mechanisms to manage data input and output rates. By controlling the pace at which data is written to and read from the buffer, you can prevent overflow and ensure smooth data transfer.
3. Software and Driver Optimization
The CYUSB3014-BZXC’s performance is highly dependent on the software stack and drivers that interact with the hardware. Ensuring that the software is optimized for high-speed data transfer is essential:
Efficient Data Handling: Ensure that the application software is optimized for efficient data transfer. Minimize unnecessary data processing or conversions that could slow down transfer speeds.
Driver Optimization: Use the latest drivers provided by Cypress Semiconductor, as they are optimized for performance. Ensure that drivers are compatible with the operating system and hardware configuration, and take advantage of advanced features such as USB power management.
Real-Time Operating Systems (RTOS): For time-sensitive applications, such as industrial automation or medical systems, using a real-time operating system (RTOS) can help manage data transfer tasks with minimal latency.
4. Testing and Validation for High-Speed Applications
Once the CYUSB3014-BZXC controller has been integrated and optimized, it’s essential to conduct thorough testing and validation to ensure that the system is meeting its performance requirements. Some tests to perform include:
Throughput Testing: Measure the data transfer rate to ensure that the system can achieve the maximum throughput of 5 Gbps. Any significant deviations from the expected rate should be investigated and addressed.
Latency Testing: Evaluate the system’s latency to ensure that data is being transferred in real-time without delays. High latency can impact applications like video streaming or real-time data acquisition.
Stress Testing: Test the system under heavy load conditions to ensure that it can handle continuous data transfers without errors or degradation in performance.
5. Maintaining Data Integrity and Error Handling
In high-speed data applications, ensuring data integrity is crucial. The CYUSB3014-BZXC provides features to help detect and correct errors in data transfer, but it’s important to implement additional error-checking mechanisms at the software level. This includes:
CRC Checking: Implement Cyclic Redundancy Check (CRC) to verify the integrity of the transmitted data and detect any transmission errors.
Error Recovery: Design the system to automatically detect errors and attempt to recover without losing data. This can involve retransmitting data or implementing error-correcting codes.
Conclusion
The CYUSB3014-BZXC USB 3.0 controller is a powerful and flexible solution for high-speed data transfer applications. Its combination of high throughput, low latency, and integration with advanced features like FIFO buffers makes it ideal for use in external storage devices, industrial systems, medical applications, and more.
By following best practices in power supply design, FIFO management, software optimization, and testing, developers can ensure that their systems achieve maximum performance and reliability. Whether you are designing a consumer device, an industrial controller, or a high-performance medical instrument, the CYUSB3014-BZXC is an invaluable tool for enabling seamless high-speed data transfer.
