Understanding STM8S005K6T6C Issues

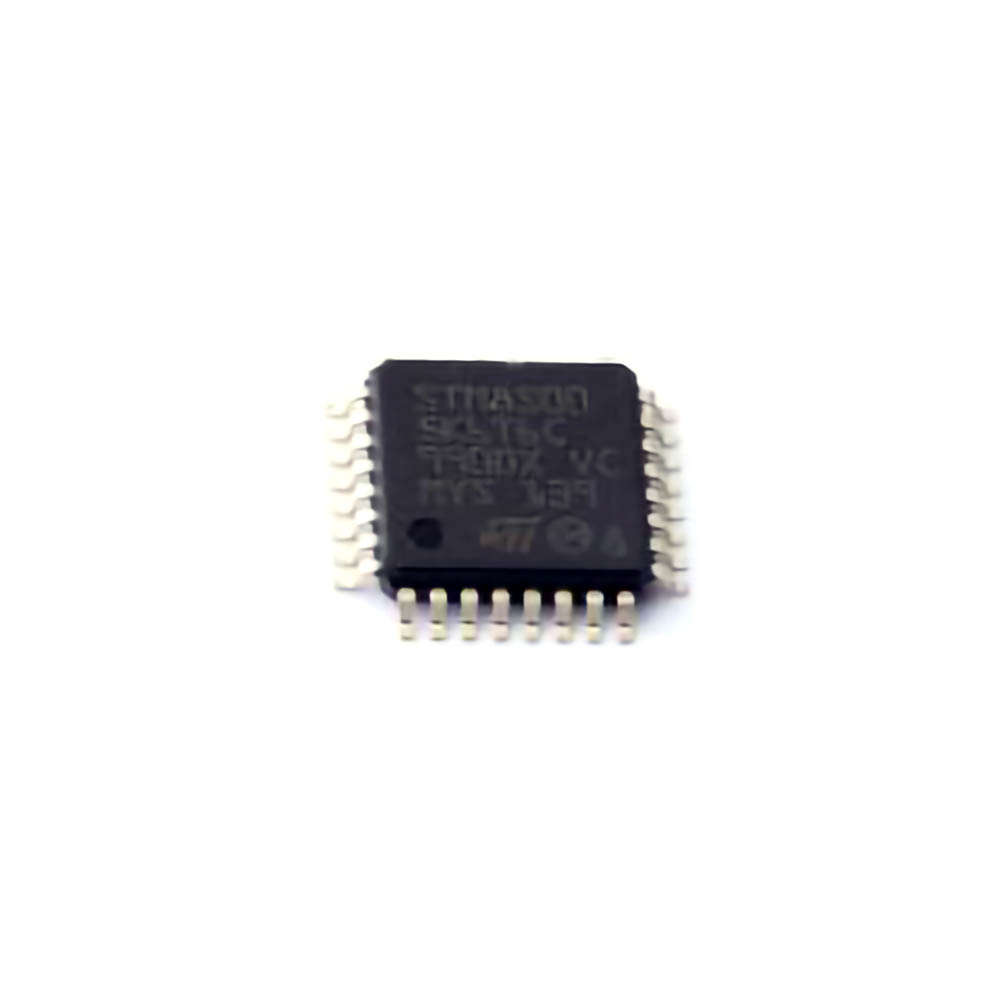

The STM8S005K6T6C microcontroller, part of STMicroelectronics' STM8 family, is a cost-effective, 8-bit MCU designed for low- Power Embedded applications. It comes equipped with a variety of features, including a 16MHz Clock , multiple I/O ports, timers, and ADCs, making it ideal for a broad range of projects. However, like any complex piece of technology, it may present challenges in terms of performance, connectivity, or functionality. This article delves into the most common troubleshooting issues and provides effective solutions for resolving them.
1. Power Supply Problems
The first thing to check when facing issues with the STM8S005K6T6C is the power supply. If the microcontroller isn't receiving stable voltage, it will fail to operate correctly or not power up at all.
Common Issues:
Insufficient power supply voltage (STM8S005K6T6C typically operates at 3.3V or 5V).
Power supply spikes or noise can disrupt proper operation.
Incorrect connection of power lines or unconnected VDD/VSS pins.
Solution:
Verify that the voltage regulator or power supply circuit provides a stable and accurate output within the specifications for the STM8S005K6T6C.
Use a multimeter or oscilloscope to check for any fluctuations or noise in the supply voltage.
Ensure proper grounding and avoid grounding issues that could lead to voltage dips or drops.
2. Incorrect Configuration of Peripherals
One of the most frequent causes of issues in embedded systems is incorrect configuration of peripherals. Since the STM8S005K6T6C comes with a variety of integrated peripherals, including timers, GPIOs, ADCs, and Communication interface s, improper setup can easily lead to unexpected behavior.
Common Issues:
Misconfigured timers or ADCs can cause the system to malfunction.
Incorrect I/O pin configuration may lead to unresponsive outputs or missed inputs.
Communication interfaces like UART, SPI, or I2C may not work due to incorrect baud rates, data bits, or clock settings.
Solution:
Double-check the configuration of peripherals in your code and make sure each peripheral’s registers are set to the correct values.
Cross-reference your settings with the STM8S005K6T6C datasheet to ensure compatibility.
Utilize initialization functions and libraries provided by STMicroelectronics to simplify setup and avoid manual errors.
3. Programming Errors and Firmware Corruption
In embedded systems development, programming errors and firmware corruption are common causes of failures. If your STM8S005K6T6C doesn’t respond as expected or resets unexpectedly, it could be due to a corrupted program or issues with the flash memory.
Common Issues:
Incorrect bootloader configuration.
Flash memory errors due to improper write/erase cycles.
Fai LED program upload or incomplete firmware flashing.
Solution:
Use the ST-Link/V2 programmer/debugger tool to reload the firmware and check if the issue persists.
Use a reliable programming tool, such as the STM8 Flash Loader or IAR Embedded Workbench, to ensure that the firmware is correctly uploaded.
Ensure that the bootloader settings are correctly configured, particularly if you are using an external programmer.
If flash corruption is suspected, consider erasing and reprogramming the device’s memory.
4. Clock Issues
The STM8S005K6T6C microcontroller features an on-chip clock system, and any irregularities in the clock setup can cause the MCU to operate erratically or fail to start.
Common Issues:
The external oscillator may not be functioning correctly, causing the MCU to fail to operate.
The internal clock might be misconfigured, leading to timing errors.
Incorrect clock division may result in slower or faster execution than expected.
Solution:
Ensure that the external crystal or oscillator is connected properly and is functioning correctly.
If you are using an external clock source, ensure the pins for the oscillator are connected and grounded properly.
Use an oscilloscope to verify the clock signals on the relevant pins of the MCU and ensure they match the expected frequency.
Revisit your clock configuration code to ensure proper setup of internal and external clock sources.
5. Communication Interface Failures
In embedded systems, communication with external devices via interfaces like UART, SPI, or I2C is common. However, many problems stem from improper setup or hardware issues.
Common Issues:
UART data transmission failure due to incorrect baud rate or framing errors.
SPI or I2C bus contention or mismatched clock signals.
Incorrect chip select or addressing issues.
Solution:
Double-check the wiring for the communication lines, ensuring that the RX/TX, SCK, MOSI, and MISO pins are properly connected.
For I2C or SPI, verify that the chip select (CS) and address lines are correctly configured.
Confirm that the baud rates, parity, and data bits match between devices.
Use logic analyzers or oscilloscopes to monitor the data lines and verify correct communication protocols.
Advanced Troubleshooting and Solutions
6. Unresponsive GPIO Pins
General-purpose I/O (GPIO) pins are essential in many embedded designs. If a GPIO pin is unresponsive, it may be due to misconfiguration or a hardware fault.
Common Issues:
GPIO pins may be inadvertently set to inputs or outputs, leading to unintended behavior.
External components connected to the GPIO pins may cause interference or short-circuits.
The pull-up or pull-down resistors may not be configured correctly, leading to floating inputs.
Solution:
Check the configuration of the GPIO pins in your firmware, ensuring the direction (input/output) and mode (analog/digital) are correctly set.
Use internal pull-up or pull-down resistors if required, or connect external resistors to ensure stable voltage levels on unused input pins.
Verify that external components connected to the pins (e.g., sensors, LED s) are not causing shorts or other issues.
Use a multimeter or oscilloscope to test the voltage levels at the GPIO pins.
7. Watchdog Timer Resets
The watchdog timer (WDT) is a critical safety feature of many embedded systems, designed to reset the system in case of software hang-ups. However, if the WDT is not handled properly, it may trigger unexpected resets.
Common Issues:
The watchdog timer is not being regularly cleared, causing the system to reset.
Incorrect WDT timeout configuration.
A software bug causes the system to reset prematurely.
Solution:
Ensure that your firmware periodically clears the watchdog timer before the timeout occurs. If your system is busy and doesn’t clear the WDT, the MCU will reset.
Verify that the WDT timeout is configured according to your application needs. A timeout set too short can lead to frequent resets.
Use debugging tools to track where the software might be hanging or taking longer than expected to clear the WDT.
8. Overheating and Thermal Issues
Overheating can cause the STM8S005K6T6C to become unstable or shut down entirely. Thermal issues are common when the microcontroller is subjected to prolonged high loads or inadequate cooling.
Common Issues:
High power consumption due to running the MCU at maximum clock speed.
Insufficient ventilation or heat dissipation from the PCB.
Overvoltage leading to excessive heat generation.
Solution:
Ensure that the STM8S005K6T6C is not operating under conditions that exceed its thermal limits. Refer to the datasheet for maximum operating temperatures.
Consider improving the PCB layout to enhance heat dissipation, such as adding thermal vias or heatsinks.
If you’re using the microcontroller at its maximum clock speed or under heavy load, consider reducing the clock speed or adding active cooling.
9. Debugging and Diagnostics
When troubleshooting the STM8S005K6T6C, a systematic approach is critical. Using debugging tools like ST-Link/V2, IAR Embedded Workbench, and STVD (ST Visual Develop) can help quickly identify the root cause of the problem.
Common Issues:
Misconfigured debugger settings.
Lack of error feedback or unclear debugging messages.
Solution:
Use an integrated debugger like ST-Link/V2 to step through your code and monitor registers in real-time.
Set up appropriate breakpoints and watch variables to isolate the issue in your code.
If the debugger is not connecting, ensure that the correct connection pins are used, and that there are no issues with the programming interface.
Conclusion
Troubleshooting the STM8S005K6T6C microcontroller can be a challenging yet rewarding task. By understanding common issues such as power supply failures, misconfigured peripherals, communication problems, and hardware faults, you can quickly resolve most problems that arise during development. Always ensure your setup is correct and verify configurations using available diagnostic tools to keep your embedded projects running smoothly.
