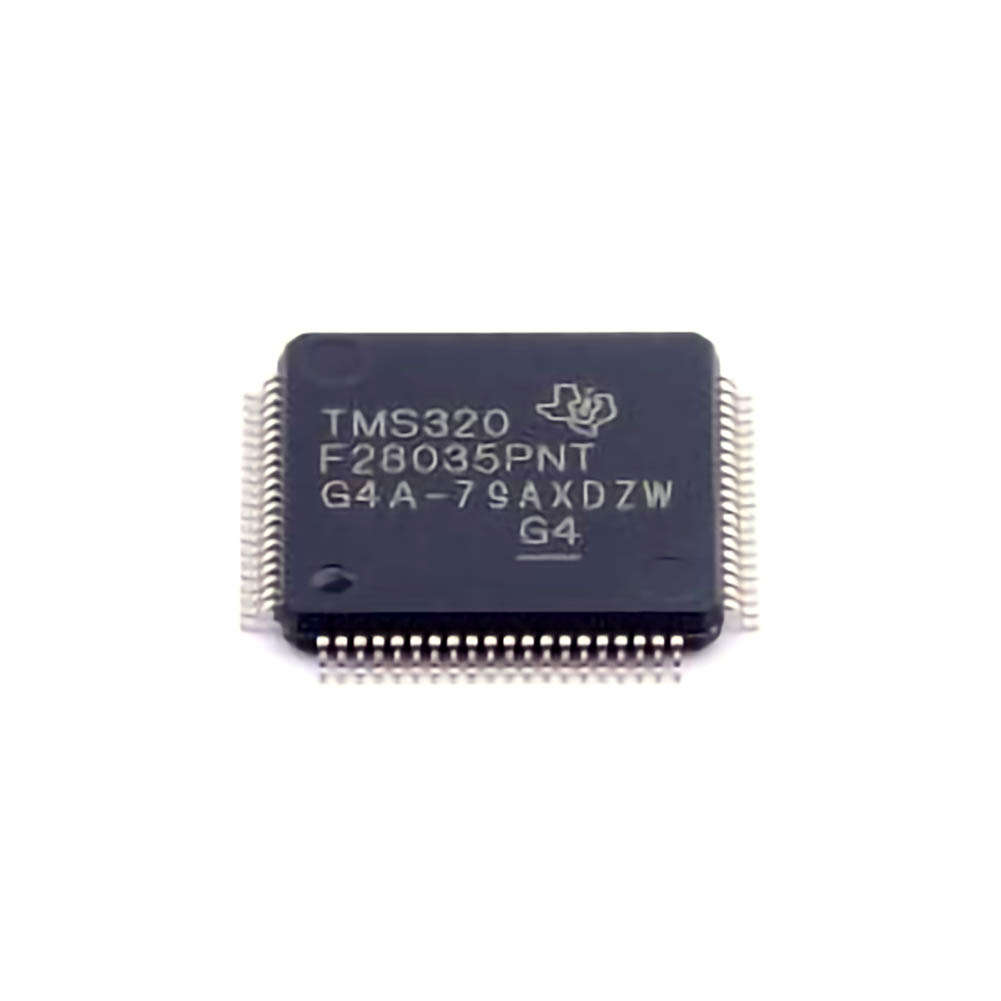

Common Issues and Basic Troubleshooting for TMS320F28035PNT
The TMS320F28035PNT microcontroller from Texas Instruments is part of the C2000 series, renowned for its processing Power , high-speed ADCs, and PWM generation capabilities. It’s designed for demanding applications like motor control, digital power, and signal processing. However, even with its robust features, users sometimes encounter problems during development or deployment. Below are some common issues along with troubleshooting tips to help users address them efficiently.
1. Power Supply Issues
One of the most frequent problems with embedded systems, including those utilizing the TMS320F28035PNT, is power supply instability or inadequate power. Power supply issues can cause the microcontroller to reset unexpectedly, or worse, fail to start.
Symptoms:
Unpredictable resets or failures to boot.
Inconsistent behavior or erratic operation.
Power-on failures or freezing.
Troubleshooting Solutions:
Check Voltage Levels: Ensure that the supply voltage to the microcontroller is stable and within the specified range (typically 3.3V for the TMS320F28035PNT). A drop in voltage can lead to unpredictable behavior.
Verify Current Demand: The microcontroller, when coupled with peripherals (e.g., Sensor s, motor controllers), can require significant current. Ensure your power supply can deliver the necessary current without significant voltage sag.
Monitor Ripple and Noise: Use an oscilloscope to check for noise or ripple in the power supply, which can interfere with the MCU’s operation. Adding decoupling capacitor s close to the power pins can help minimize these effects.
Examine Power Rails: If your system has multiple voltage rails (e.g., 3.3V for the MCU, 5V for other peripherals), ensure they are correctly regulated and not interfering with one another.
2. Clocking and Oscillator Problems
Clock-related issues are another common source of trouble, especially when configuring the system's clock source for high-performance applications. Incorrect clock configurations can lead to unexpected resets or improper Timing for tasks.
Symptoms:
System hangs during startup.
Inconsistent timing or failure to achieve desired performance.
Reset loops or failure to initialize peripherals correctly.
Troubleshooting Solutions:
Check the Crystal Oscillator: Ensure the external crystal or oscillator is properly connected and matches the specifications for the TMS320F28035PNT (e.g., the correct frequency range).
Validate Clock Source Configuration: If using an external clock, confirm that the clock source is correctly selected in the system's initialization code. Misconfigured PLL (Phase-Locked Loop) or clock dividers can lead to performance issues.
Test Internal Oscillators : In case the external oscillator is not functioning correctly, you can fall back on the internal clock source (which might be less precise but still functional for basic operations). Confirm the internal clock settings are correct through the MCU’s configuration registers.
3. Debugging Communication Issues
Communication problems are quite common, particularly when interfacing with external peripherals like Sensors or communication module s (e.g., SPI, I2C, UART). If your TMS320F28035PNT is not communicating with external devices, it can result in data loss or failure of the system to respond to input.
Symptoms:
Data transmission failure (e.g., incorrect or no data over UART/SPI/I2C).
Timeout errors.
Unresponsive peripherals.
Troubleshooting Solutions:
Inspect Bus Integrity: Ensure that the communication lines (SPI, I2C, UART) are properly connected and have no shorts or opens. Use an oscilloscope or logic analyzer to inspect the signals on the communication lines and verify they match the expected protocols.
Check Peripherals' Power and Initialization: Many communication issues arise from uninitialized or incorrectly powered peripherals. Confirm that the external devices are powered up and correctly initialized before starting communication.
Verify Timing and Baud Rate: Ensure that the baud rates, timing parameters, and configurations for both the TMS320F28035PNT and the peripheral devices match. For instance, incorrect baud rates or mismatched clock sources between the MCU and the peripheral can lead to communication failure.
Enable Error Handling: Make use of error flags or interrupts built into the MCU’s peripherals to identify when something goes wrong. If errors like buffer overflow, framing errors, or data corruption occur, the microcontroller can handle these issues more gracefully.
4. Software and Firmware Bugs
In any embedded system, software bugs often present themselves as system failures or crashes. While hardware issues are one cause, many problems stem from software bugs or improper initialization of hardware features.
Symptoms:
Random system crashes or freezes.
Unexpected behavior or failure to meet performance targets.
Missing or incorrect outputs despite expected inputs.
Troubleshooting Solutions:
Verify Initialization Code: Ensure all hardware peripherals are correctly initialized. This includes ADCs, timers, GPIOs, communication interface s, and any other integrated peripherals.
Check for Buffer Overflows: In high-speed applications, particularly with real-time data processing (e.g., motor control), buffer overflows can occur if data is not properly handled. Implement proper buffer management techniques.
Use Debugging Tools: Leverage software debugging tools like breakpoints, step-through execution, and watch variables in an IDE like Code Composer Studio to identify where the software fails. Check for infinite loops or invalid Memory Access es.
Examine Interrupts: Misconfigured interrupts can cause erratic system behavior. Ensure interrupt priorities are set properly and that no interrupt handling conflicts are occurring.
5. Overheating or Thermal Management Issues
Thermal issues can also be a problem with high-performance microcontrollers. Although the TMS320F28035PNT is designed to operate at relatively high speeds, inadequate cooling can cause overheating and affect its reliability and performance.
Symptoms:
Overheating warning (if temperature sensors are present).
System throttling or automatic shutdown.
Reduced performance over time.
Troubleshooting Solutions:
Check Temperature Sensors: Use any onboard temperature sensors or external thermistors to monitor the MCU’s temperature. If the device is running too hot, consider adding heatsinks or improving the overall cooling of the system.
Ensure Adequate Ventilation: If the microcontroller is part of a larger system, make sure there is sufficient airflow around it. Overheating can be caused by poor ventilation or improper placement inside an enclosure.
Lower Operating Frequency: If heat is a recurring issue, reducing the clock speed or workload of the MCU may help lower the temperature.
Advanced Troubleshooting for TMS320F28035PNT and System Optimization
Once the basic troubleshooting steps have been followed, engineers can delve deeper into more advanced strategies to resolve persistent issues or enhance system performance.
6. Memory-Related Issues
Memory corruption, especially with Flash or SRAM, can be a significant cause of system failures or unexpected behavior. This issue can arise due to power loss during write operations, faulty memory modules, or improper addressing.
Symptoms:
Unexpected resets or data corruption.
Failure to execute or load firmware correctly.
Inconsistent system behavior after power cycles.
Troubleshooting Solutions:
Flash Programming: Ensure that the flash memory is programmed correctly. Use tools like the On-Chip Flash Programmer (from Texas Instruments) to check the contents of the flash memory.
Check for Unaligned Memory Access: Ensure that memory accesses are aligned as required by the TMS320F28035PNT’s architecture. Misaligned accesses may lead to data corruption or hard faults.
Memory Check: Periodically check SRAM and Flash for corruption using CRC checks or memory validation techniques. Implement software routines to validate memory integrity during startup or critical operations.
Use Watchdog Timer: Implement a watchdog timer to reset the system in case of unexpected failures or if the software gets stuck due to memory corruption.
7. Power-On Reset Issues
If your system fails to boot or doesn’t function correctly on power-up, this could be due to a poor Power-On Reset (POR) circuit. The TMS320F28035PNT has an internal POR, but external factors like improper capacitor values can cause issues.
Symptoms:
The microcontroller doesn’t start after power-on.
The system hangs during boot.
The system fails to initialize after a reset.
Troubleshooting Solutions:
Verify the POR Circuit: Check the external components associated with the POR, such as resistors and capacitors. The timing of the reset signal is crucial, and improper component values may lead to failure to reset correctly.
Check for Glitch-Free Power: Use a power-on monitoring circuit or IC to ensure that the power rails come up cleanly and without glitches. A glitch during startup can sometimes cause the microcontroller to miss its reset signal.
Test with External Reset: If necessary, implement an external reset controller to ensure that the TMS320F28035PNT is correctly initialized upon power-up.
8. Interfacing with External Hardware
Many users face issues when trying to interface the TMS320F28035PNT with external sensors, actuators, or other hardware. Interfacing problems may arise from voltage mismatches, communication protocol errors, or incorrect peripheral configurations.
Symptoms:
Incorrect readings from sensors.
Communication failure with external devices.
Sensors or actuators failing to respond.
Troubleshooting Solutions:
Voltage Level Shifting: Ensure proper voltage level shifting when interfacing with 5V logic devices. The TMS320F28035PNT operates at 3.3V, so level shifting is often required when interfacing with 5V components.
Protocol Mismatch: Double-check the configuration of the communication protocols (SPI, I2C, etc.). Ensure that both the MCU and external devices are using compatible settings for data rates, clock polarity, and bit order.
Signal Integrity: Use an oscilloscope to check signal integrity on the communication lines. Noise, reflections, or improper routing of traces can corrupt communication signals.
9. Enhancing Real-Time Performance
For applications requiring high performance, such as motor control or signal processing, optimizing real-time performance is critical. Often, engineers need to fine-tune their systems to ensure minimal latency and maximum throughput.
Symptoms:
Delayed responses or slow processing times.
Inconsistent performance under load.
Jitter or time synchronization issues.
Troubleshooting Solutions:
Optimize Interrupt Handling: Minimize interrupt latency by reducing the number of interrupt sources or by using priority levels to ensure critical tasks are given higher priority.
Fine-tune DSP Algorithms: If using the MCU’s DSP capabilities, ensure algorithms are optimized for the hardware. This may include using fixed-point arithmetic instead of floating-point or optimizing loops and data handling routines.
Use Direct Memory Access (DMA): For high-throughput applications, leveraging DMA channels can help offload tasks from the CPU, allowing real-time performance without interruptions.
10. Final Words on Troubleshooting the TMS320F28035PNT
The TMS320F28035PNT is a versatile and powerful microcontroller, but like any sophisticated embedded system, it may require troubleshooting to ensure optimal performance. By following the steps outlined in this guide, engineers can resolve common issues, optimize performance, and ensure a smooth development process. With careful attention to hardware configurations, software optimizations, and real-time performance considerations, the TMS320F28035PNT can serve as a reliable platform for even the most demanding applications.
