Understanding the W25Q128JVSIQ Flash Memory Chip

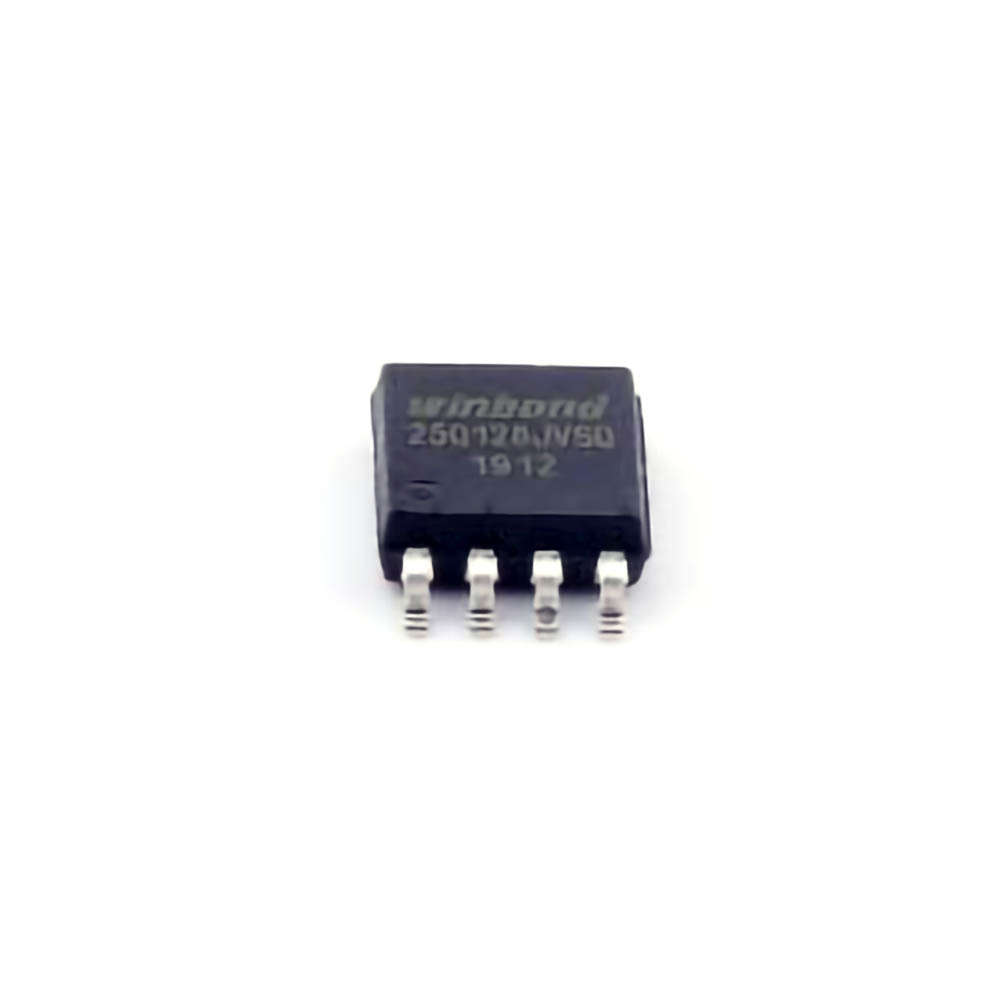

The W25Q128JVSIQ is a popular NOR flash memory chip from Winbond. It provides 128Mb (16MB) of memory with an SPI interface, making it ideal for applications in embedded systems, consumer electronics, automotive, and IoT devices. It’s widely appreciated for its reliability, high-speed performance, and low Power consumption. However, like any other component in a system, the W25Q128JVSIQ is not immune to issues, and troubleshooting such chips requires a structured approach.
In this first part, we will dive into the common issues that can arise with the W25Q128JVSIQ and provide troubleshooting tips for resolving them. Let’s break down these problems into categories like Communication errors, power-related issues, and write/read failures.
1. Communication Problems (SPI Interface Issues)
One of the most common problems encountered when working with the W25Q128JVSIQ is communication failure between the chip and the microcontroller or processor. The W25Q128JVSIQ communicates via the Serial Peripheral Interface (SPI), a widely-used protocol for connecting low-speed peripherals. SPI issues can manifest in several ways, such as:
No response from the chip: This typically occurs when the chip is not receiving correct signals or the microcontroller is not generating the proper Clock pulses.
Data corruption: Inconsistent or garbled data can be a result of incorrect SPI configuration or signal integrity issues.
Slow read/write performance: This could indicate that the SPI clock speed is not optimal for the memory chip’s operation.
Solutions to SPI-related problems:
Check Wiring and Connections: Ensure that all SPI connections are correctly wired, especially the Chip Select (CS), Serial Data Out (SDO), Serial Data In (SDI), and Serial Clock (SCK) lines. Loose or broken wires can easily disrupt communication.
Verify SPI Configuration: Check the clock polarity (CPOL) and phase (CPHA) settings. The W25Q128JVSIQ requires specific SPI settings (CPOL=0, CPHA=0). Make sure that the SPI interface on your microcontroller matches the W25Q128's requirements.
Use an Oscilloscope: If data corruption occurs, use an oscilloscope to inspect the waveform of the SPI clock and data lines. This can help identify issues like Timing mismatches or noise.
Optimize Clock Speed: The W25Q128JVSIQ supports high-speed SPI operations, but using excessively high clock speeds can cause instability, especially on longer traces. Gradually reduce the clock speed to check for improvement in communication stability.
2. Power Supply and Voltage Issues
Another critical area of concern is the power supply. Flash memory chips are highly sensitive to voltage fluctuations and power irregularities. Incorrect voltage levels can cause a variety of issues, including:
Chip not powering up: The W25Q128JVSIQ requires a stable 3.3V supply for proper operation. If the voltage is too low or unstable, the chip might not power on or might exhibit erratic behavior.
Read/Write failures: Insufficient voltage can prevent the chip from correctly performing read or write operations. This can also manifest as failure to program or erase sectors.
Overvoltage damage: While the chip can tolerate some level of overvoltage, going beyond its rated 3.6V maximum can cause permanent damage.
Solutions for power-related issues:
Check Voltage: Use a multimeter to verify that the supply voltage is within the recommended 3.3V ±10% range. Ensure that the power supply is stable and well-regulated.
Add capacitor s: Power supply noise can cause unpredictable behavior. Adding decoupling capacitors (e.g., 0.1µF to 10µF) near the chip's power pins can help filter out high-frequency noise and improve stability.
Protect Against Overvoltage: To safeguard against overvoltage, consider using a voltage regulator with overvoltage protection or a Zener diode across the power supply to clamp excessive voltage.
3. Write and Read Failures
Another class of issues involves the chip’s ability to reliably read and write data. Common write and read failures include:
Write failure: Data is not being correctly written to memory, even though the write command is being issued.
Read failure: When attempting to read from a specific address, the wrong or corrupted data is returned.
Erase failure: Erasing a sector or block of memory doesn’t appear to clear the data, leaving behind remnants of old information.
Solutions for read/write failures:
Check Write Protection: The W25Q128JVSIQ supports a Write Protect (WP) feature that prevents writing to certain parts of the memory. Ensure that the WP pin is not accidentally held low, which would prevent write operations.
Verify Write/Erase Commands: Double-check that the correct commands are being sent to the chip. Use a protocol analyzer or an oscilloscope to inspect the commands and ensure that they match the W25Q128’s datasheet.
Ensure Proper Timing: The chip requires specific time intervals between commands like write, erase, and read. Failure to respect these intervals could lead to incorrect data being written or read.
Use Correct Block Sizes: The W25Q128JVSIQ supports sector-based writes and erasures. Ensure that you are not trying to write or erase more than the supported sector size (typically 4KB).
Advanced Troubleshooting and Additional Solutions for W25Q128JVSIQ Flash Memory Chip
In this second part, we will delve deeper into more advanced troubleshooting techniques and provide further insights into handling the W25Q128JVSIQ. This section focuses on debugging more complex issues, including faulty programming, factory defects, and how to optimize the chip’s performance.
4. Programming Issues
Programming issues can sometimes arise during the initial flashing or when trying to update firmware. These issues can result in data loss or the chip not being recognized after programming. A few common programming problems include:
Programming failure: The chip does not accept or store new firmware, possibly leading to a corrupted system or unresponsive device.
Firmware mismatch: In some cases, the firmware version may not be compatible with the chip’s hardware or configuration.
Failed chip initialization: Even though programming is successful, the device might fail to initialize properly, often due to configuration issues or improper command sequences.
Solutions for programming issues:
Use a Dedicated Programmer: Ensure you’re using a reliable flash programmer that supports the W25Q128JVSIQ. A dedicated programmer tool will ensure correct voltage levels and programming sequences.
Check Firmware Compatibility: Verify that the firmware is designed specifically for the W25Q128. Some flash chips with similar specs can have different command sets or timing requirements.
Follow Proper Initialization: After programming, ensure that the chip is properly initialized. The W25Q128 requires a series of commands to set up and enable the chip for normal operation. Missing or incorrect initialization can cause the device to fail to start.
5. Data Corruption and Wear-Leveling
Flash memory chips are subject to data corruption over time, especially if they are written to frequently. While NOR flash memory like the W25Q128JVSIQ typically handles read and write cycles more reliably than NAND flash, it is still subject to wear and tear, especially at the sector level.
Solutions for data corruption and wear-leveling issues:
Implement Wear-Leveling Algorithms: To prolong the lifespan of your W25Q128 chip, implement wear-leveling algorithms in your firmware. These algorithms distribute write/erase cycles evenly across the memory, preventing certain sectors from being overused and worn out prematurely.
Monitor Program/Erase Cycles: Use software tools to monitor the number of program and erase cycles on the flash memory. This helps ensure the chip is not reaching the maximum endurance prematurely.
Error Correction Codes (ECC): Using ECC can greatly improve the reliability of data stored in flash memory. For critical applications, consider integrating ECC in your system to detect and correct errors that may arise from flash wear.
6. Factory Defects and Warranty
While the W25Q128JVSIQ is a high-quality chip, factory defects can occasionally occur. Issues such as manufacturing flaws, silicon defects, or shipping damage may result in the chip not functioning as expected.
Solutions for factory defects:
Perform a Visual Inspection: Check the chip for obvious physical damage such as bent pins or signs of overheating. This is particularly useful if the chip has been exposed to excessive heat during soldering.
Check Manufacturer’s Warranty: If you suspect that the chip is defective, reach out to the manufacturer or supplier. Winbond, like many chip manufacturers, offers warranties that might allow for a return or replacement if the chip is determined to be faulty.
7. Optimizing Performance
Finally, optimizing the performance of the W25Q128JVSIQ is crucial to achieving the best possible results in your applications. Consider these tips for improving the overall efficiency of your system:
Optimize Power Consumption: Use the chip’s low-power modes whenever possible. The W25Q128 features various power-saving states, such as deep power-down and standby modes, which can help extend battery life in portable devices.
Use Fast Read Commands: The W25Q128 offers fast read commands, such as the fast-read dual I/O and quad I/O modes, which can significantly increase data transfer speeds.
Reduce Latency: To minimize latency during read and write operations, ensure that you’re using the most efficient programming commands and the optimal clock speed for your system.
Conclusion
The W25Q128JVSIQ flash memory chip is a robust and reliable component used in many embedded systems and electronic devices. However, like all electronic components, it can experience issues that hinder its performance. By following the troubleshooting tips and solutions outlined in this article, you can diagnose and resolve common problems related to communication, power, write/read failures, and more.
By being proactive and incorporating the right tools and techniques, you can ensure that your W25Q128JVSIQ chip operates at peak performance, enabling your system to function reliably and efficiently. Remember to always consult the datasheet for specific details about your chip’s capabilities, and don’t hesitate to seek expert advice if problems persist.
