Common Issues and How to Diagnose LSM6DSRTR Sensor Problems

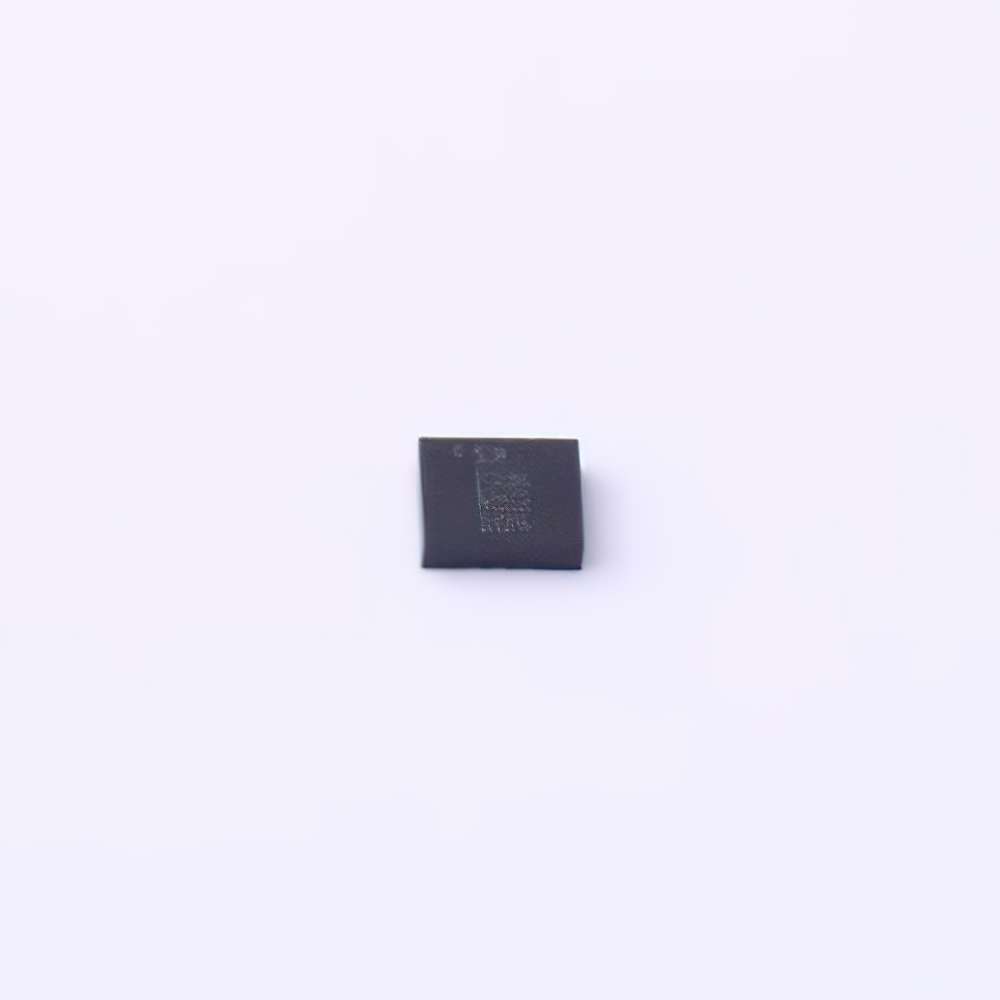

The LSM6DSRTR is a versatile 6-axis motion sensor combining a 3-axis gyroscope and a 3-axis accelerometer. With a wide range of applications from fitness tracking to industrial monitoring, this sensor is a popular choice for many developers. However, as with any complex electronic device, users might encounter occasional problems. Understanding these issues and knowing how to troubleshoot them effectively is key to getting the most out of your LSM6DSRTR sensor.
1. Communication Failure Between the Sensor and Microcontroller
One of the most common issues encountered with the LSM6DSRTR sensor is a failure in communication between the sensor and the microcontroller. This can manifest as no data being received or incorrect data from the sensor. Here's how to troubleshoot:
Check the I2C/SPI Connection: The LSM6DSRTR supports both I2C and SPI communication protocols. Ensure that the wiring and pin connections for SDA, SCL (I2C), or MISO, MOSI, SCK (SPI) are correctly configured. A loose or improperly connected wire can easily cause communication errors.
Verify Pull-up Resistors : If you are using I2C mode, confirm that appropriate pull-up resistors (typically 4.7kΩ) are installed on the SDA and SCL lines. Lack of these resistors can lead to incomplete data transmission.
Check for Address Conflicts: In I2C mode, the LSM6DSRTR has a fixed default I2C address, but some devices allow the address to be changed. If there are multiple I2C devices on the same bus, make sure the sensor's I2C address doesn't conflict with others.
Test with Known Working Libraries: Sometimes the issue is software-related. Make sure you’re using a compatible and properly updated driver for the LSM6DSRTR. Test your setup with example code provided by the manufacturer or community forums to rule out software errors.
2. No or Erratic Sensor Readings
If your sensor is responding, but you're receiving no or erratic data, several factors could be at play:
Power Supply Problems: Ensure that the LSM6DSRTR is receiving the correct operating voltage (typically 2.4V to 3.6V). A power supply that fluctuates outside this range can cause unstable sensor readings. Additionally, check that the ground (GND) connection is solid.
Incorrect Sensor Configuration: The LSM6DSRTR has a variety of settings that can be configured, including output data rate (ODR), range, and filtering. An incorrect setting, such as too low of a range for your application or an inappropriate output data rate, can lead to noisy or unreadable data. Double-check the sensor’s configuration registers using the provided datasheet and ensure they are set according to your application’s requirements.
Insufficient Calibration: Sensors often need to be calibrated to account for offsets and biases. If you are getting incorrect or fluctuating readings, performing a calibration might resolve the issue. The LSM6DSRTR includes an automatic calibration feature, but manual calibration might be needed for more accurate results.
Check the Orientation: The LSM6DSRTR measures acceleration and angular velocity in three axes. If the sensor is improperly oriented, the readings could appear incorrect. Use software to check the output data and compare it with expected values based on the sensor’s position relative to gravity or known movement patterns.
3. Sensor Not Powering On
If the sensor does not power on, the issue might be related to the power supply or internal fault:
Ensure Proper Power Connection: Double-check the power supply voltage and ensure that the sensor is properly connected to the power pins (VDD and GND). If using a breadboard or jumper wires, ensure that the connections are solid and not loose.
Verify Sensor Reset State: The LSM6DSRTR may require a hardware reset to initialize properly. A dedicated reset pin or a software command may be required, depending on your setup. Refer to the datasheet for instructions on how to reset the sensor.
Check for Short Circuits: If you suspect a hardware failure, inspect the board for possible short circuits or damage to the sensor. This is especially important if the sensor has been subjected to overvoltage or other harsh conditions.
Advanced Troubleshooting Techniques and Solutions for the LSM6DSRTR
In addition to the common issues described in Part 1, users may encounter more complex problems with the LSM6DSRTR sensor. These issues often require deeper investigation or more advanced techniques. Below are some solutions and tips for dealing with advanced troubleshooting scenarios.
1. Inaccurate or Unstable Data due to Environmental Interference
The LSM6DSRTR sensor is sensitive to various environmental factors, such as temperature fluctuations, electromagnetic interference ( EMI ), and mechanical vibrations. These factors can cause inaccurate or unstable sensor readings.
Temperature Compensation: The performance of MEMS sensors like the LSM6DSRTR can degrade significantly with changes in temperature. To mitigate this, ensure that the sensor is within the specified operating temperature range. Many sensor libraries allow for temperature compensation, so consider implementing that in your code to offset temperature-related errors.
Reduce Electromagnetic Interference (EMI): EMI from nearby electrical components or power lines can affect sensor readings. Ensure that your sensor is adequately shielded or placed away from high-frequency components. Using shielded wires or placing the sensor inside an enclosure can help mitigate EMI effects.
Damping Mechanical Vibrations: If the sensor is located near machinery or in an environment with constant vibrations, consider using mechanical damping or vibration isolation techniques. Additionally, you may need to filter the data in software to account for high-frequency noise from vibrations.
2. Data Integrity Issues: Filtering and Noise Reduction
The LSM6DSRTR can output noisy data, especially when measuring small accelerations or angular velocities. If you are experiencing significant noise, consider using the following techniques to improve data integrity:
Low-Pass Filtering: One of the most effective ways to filter out noise is by using a low-pass filter. You can implement a simple moving average filter in your code to smooth the data. Many sensor libraries also provide built-in digital filters that can be activated to reduce noise.
Sensor Fusion: If you are using both the accelerometer and gyroscope in your application, sensor fusion algorithms like the Kalman filter or complementary filter can help combine the data from both sensors, reducing noise and improving accuracy.
Adjusting Output Data Rate (ODR): A higher ODR can improve the responsiveness of the sensor, but it may also increase noise levels. Conversely, a lower ODR may reduce noise but make the sensor slower to react to changes. Experiment with different ODR settings to find a balance that suits your application.
3. Addressing Software or Firmware Issues
Sometimes the problem lies not with the hardware, but with the software or firmware interacting with the LSM6DSRTR. Issues such as incorrect initialization or misconfigured settings are often overlooked.
Check Initialization Code: Ensure that your initialization code is correctly setting up the sensor, including enabling the correct registers, setting the desired output data rate, and configuring interrupt pins if needed. Review the manufacturer’s example code to ensure your setup is correct.
Update Firmware and Libraries: Always use the latest firmware and libraries for your microcontroller and the LSM6DSRTR sensor. Manufacturers frequently release updates to improve performance, fix bugs, or add new features. If you are using open-source libraries, check for updates from the community.
Debugging with Serial Output: If your setup is still not working, use a serial output to print the sensor’s register values or sensor outputs to help debug the issue. This can give you insights into what might be going wrong, especially if you notice discrepancies between expected and actual values.
4. Utilizing the LSM6DSRTR’s Built-in Diagnostics
The LSM6DSRTR offers built-in diagnostic features that can help you quickly identify issues:
Self-Test Function: The LSM6DSRTR includes a self-test function that allows you to verify if the accelerometer and gyroscope are working as expected. Activating this feature will provide a diagnostic output, which you can compare against the datasheet specifications.
Fault Detection Registers: The sensor includes registers that can help you detect errors such as overflows or calibration faults. Refer to the datasheet to find these registers and incorporate them into your diagnostic procedures.
By following these troubleshooting tips and utilizing the built-in diagnostic features, you should be able to resolve most common problems with the LSM6DSRTR sensor. Whether dealing with communication failures, erratic readings, or environmental interference, these strategies will help you identify and address the root cause of the issue, ensuring reliable sensor performance for your applications.
With this comprehensive troubleshooting guide, you’re now equipped to tackle any challenges that arise when using the LSM6DSRTR sensor. By following these steps and utilizing the suggested solutions, you can ensure a smooth and effective experience while working with one of the most advanced motion sensors available. Happy troubleshooting!
